Product Summary
A high-end stereo amplifier designed for delivering exceptional audio quality with robust power output.
Overall Popularity
53%
+39% from last month
Popularity in Amplifiers
100%
0% from last month
Popularity in Streamers
98%
+1% from last month
The Pass Labs X250.8 is a high-performance stereo amplifier that offers 250 watts per channel at 8 ohms and 500 watts at 4 ohms. It operates in Class A bias for the first 14 watts and then switches to Class AB, providing a balance between sound quality and efficiency. Key features include symmetrical circuitry for balanced audio reproduction, high-quality components for clarity and dynamics, and both balanced (XLR) and single-ended (RCA) inputs for flexibility. The amplifier is built with dual-mono construction to minimize crosstalk and features large heat sinks for efficient cooling. It also includes a robust power supply and precise volume control for optimal performance.
### Specifications
- **Power Output**: 250 watts per channel at 8 ohms, 500 watts at 4 ohms
- **Frequency Response**: 1.5 Hz to 100 kHz
- **Gain**: 26 dB
- **Input Impedance**: 50 kohm (Single Ended), 100 kohm (Balanced)
- **Damping Factor**: 150
- **Output Noise**: 200 μV
- **Current Draw @ Idle**: 3.4 amps
- **Power Consumption**: 450 watts
- **Temperature**: 53° C
- **Unit Dimensions**: 19" W x 21.25" D x 7.5" H
- **Weight**: 100 lbs
Similar Products
Products with similar specifications and features

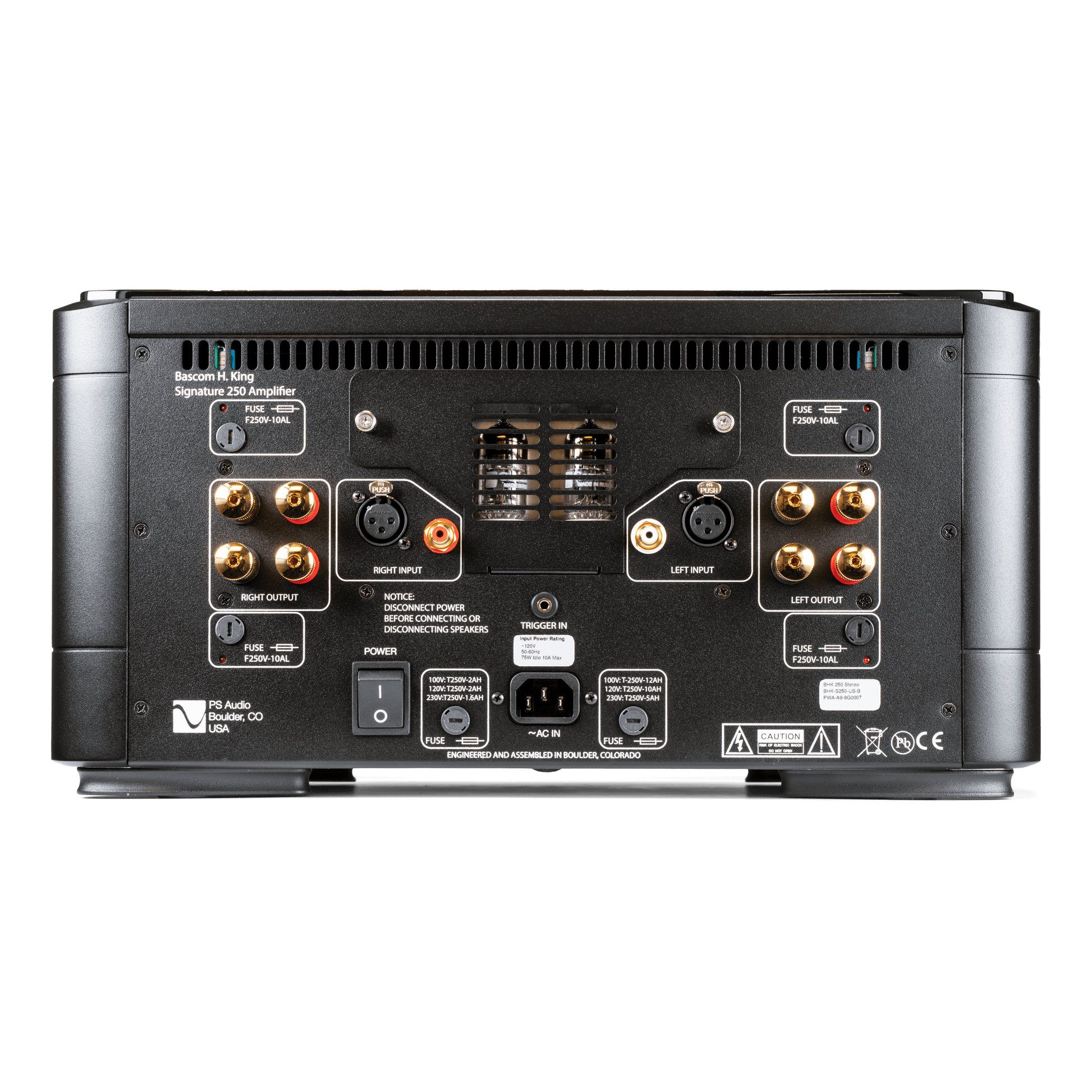

PS Audio BHK Signature 250 Stereo Power Amplifier
