Product Summary
25W Class A integrated amplifier combining XP-12 preamp and XA-25 amplifier sections for high-end audio performance.
Overall Popularity
43%
+34% from last month
Popularity in Amplifiers
99%
-1% from last month
Popularity in Integrated Amplifiers
100%
+1% from last month

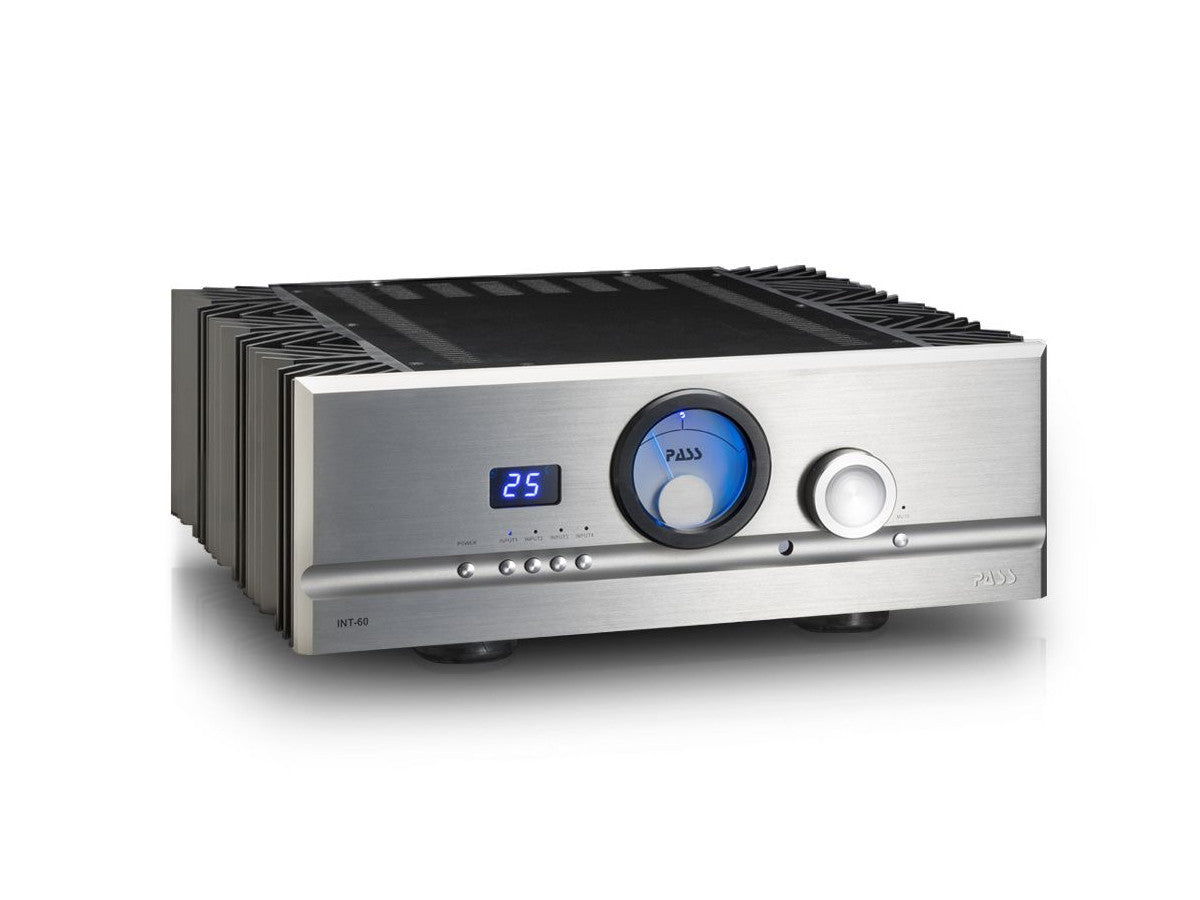

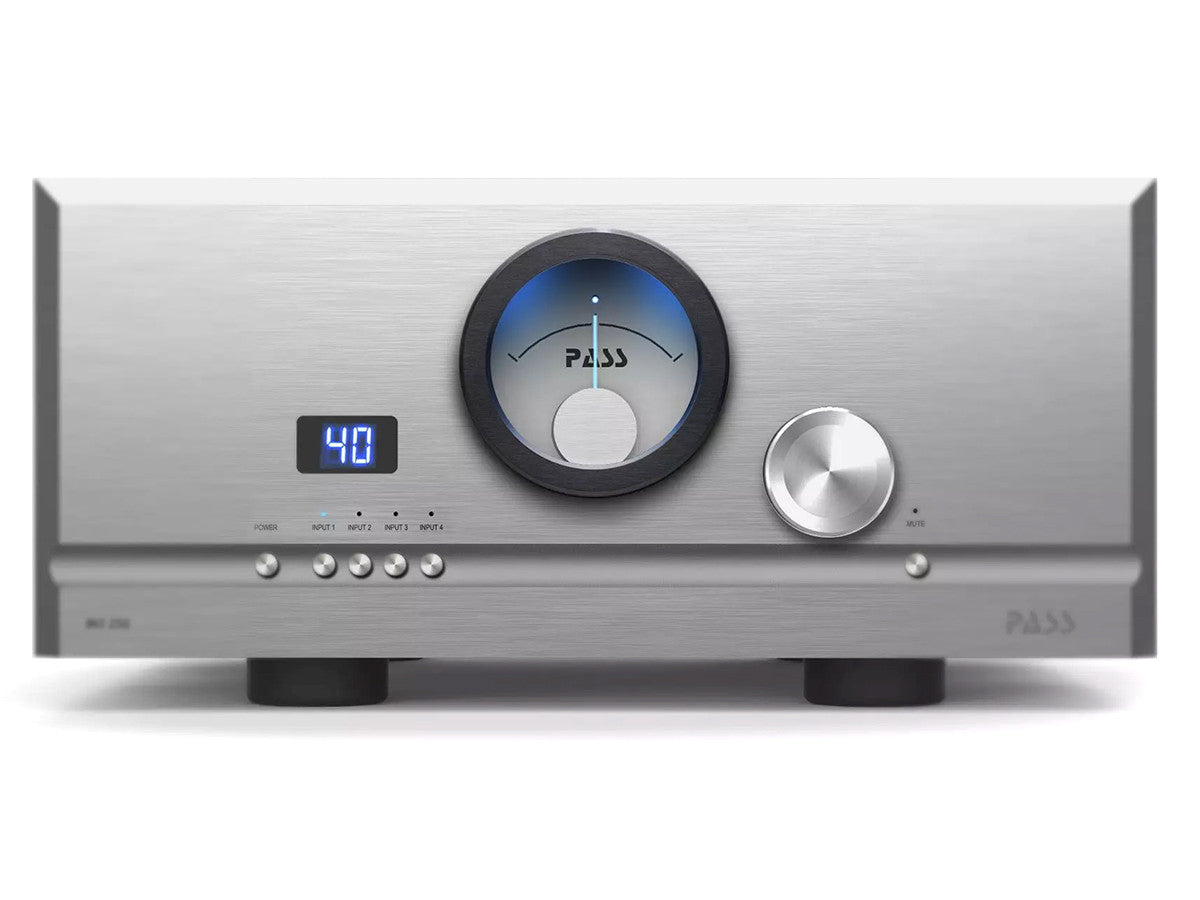

The Pass Labs INT-25 is a pure Class A integrated amplifier delivering 25W/channel into 8Ω (50W into 4Ω) with exceptional transparency and musicality. It features a simplified single-ended preamp section from Pass Labs' higher-end INT models, paired with a direct-coupled XA25-derived amplifier section using industrial-grade power FETs. The design emphasizes minimal signal path components, no degeneration circuitry, and a constant-current bias system for low distortion (0.1% THD) and high damping factor (500). With three RCA inputs, remote control, and robust construction (49 lbs), it targets audiophiles seeking uncompromising sound quality with efficient speakers.
Power Output: 25W RMS @ 8Ω, 50W @ 4Ω
Class: Pure Class A
THD: <0.1% @ 1kHz
Damping Factor: 500
Inputs: 3× RCA
Gain: 26dB
Bandwidth: DC-100kHz (-2dB)
Noise: <150μV
Dimensions: 17×17.375×6 inches
Weight: 49 lbs
Power Consumption: 200W operational, <1W standby
Similar Products
Products with similar specifications and features

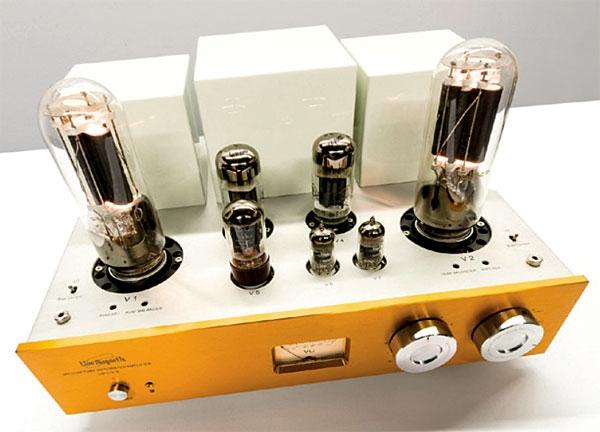

Line Magnetic 518ia Integrated Amplifier
