About the Oppo 105

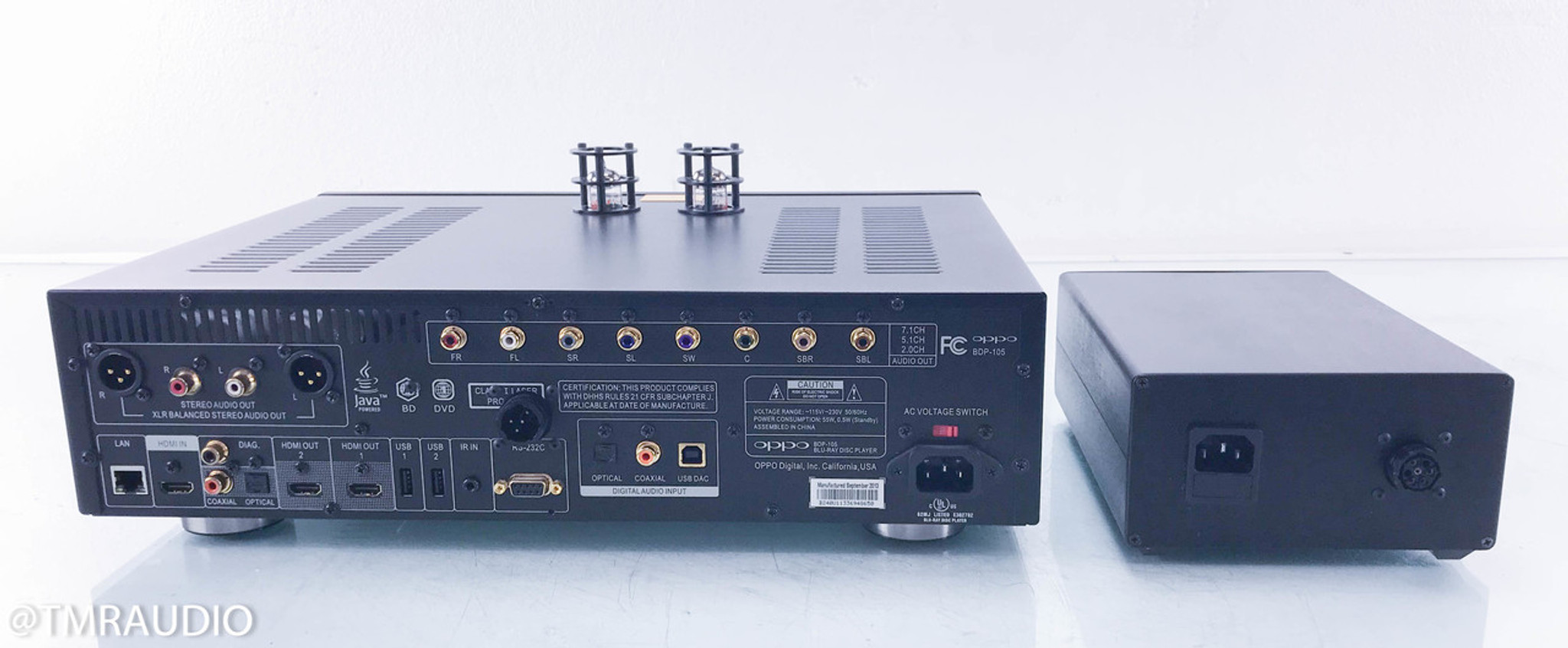

The ModWright Instruments Oppo BDP-105 'Truth' modification extensively upgrades the stock Oppo BDP-105 ( user-supplied) Blu-ray/SACD/CD player. Key changes include a complete redesign of the single-ended and balanced output stages with a fully balanced Class A tube analog stage using two 6SN7 driver tubes, an external tube power supply (PS 9.0 or 9.9) with 5AR4 rectifier and 13EM7 regulators, upgraded Cardas RCA connectors, Furutech cryo-treated IEC, high-quality resistors, cryo-treated solid-core silver signal wire, improved power supplies for digital circuitry, and chassis damping. The digital section remains untouched, retaining the excellent ESS Sabre ES9018 DAC chips and clock. Optional region-free upgrade available. Voids Oppo warranty but includes 1-year ModWright warranty. Highly praised for natural, rich sound with better resolution and soundstage.
Specifications
Digital Audio
DAC capabilities and digital audio processing
- Bit Depth
- 24-bit
- Max Sample Rate
- 192 kHz
- MQA Support
- No
- DAC Chip
- ESS Sabre ES9018
Analog Output
Analog signal output specifications
- THD
- 0.000%
- SNR
- 130 dB
- Output Voltage
- 2.1V RMS
- Max Output Voltage
- 4.2V RMS
Connectivity
Input and output connections
- Bluetooth
- No
- Wi-Fi
- No
- Ethernet
- No
- Digital Inputs
- HDMI, Coaxial, Optical
- Analog Outputs
- RCA, XLR
Physical Dimensions
Size, weight, and appearance
- Dimensions
- 430 × 123 × 311 mm (W × H × D)
- Weight
- 8.2 kg (18 lbs)
Specifications are community-contributed and may not be accurate or complete. Verify all details with the manufacturer before making purchasing decisions. Terms & Conditions
